Aperio Digital Scanners – Aperio GT 450

Aperio GT 450

Scale up Digital Pathology operations by increasing throughput in high volume research pathology laboratories, with 450 slide capacity and rapid scanning.

For Research Use Only. Not for use in diagnostic procedures.



Compare

Product Description

Aperio GT 450 – Automated, High Capacity Digital Pathology Slide Scanner

Fast-Forward to Next Generation Imaging

The Aperio GT 450 enables histotechnicians to complete scanning tasks quickly and with confidence leveraging a 32-second scan speed*. Output 81 slides/hr at 40x* delivering high quality images with Leica optics and with an IT architecture that is secure and scalable. From the pathology lab to the IT room, the Aperio GT 450 is designed to scale up digital pathology operations.

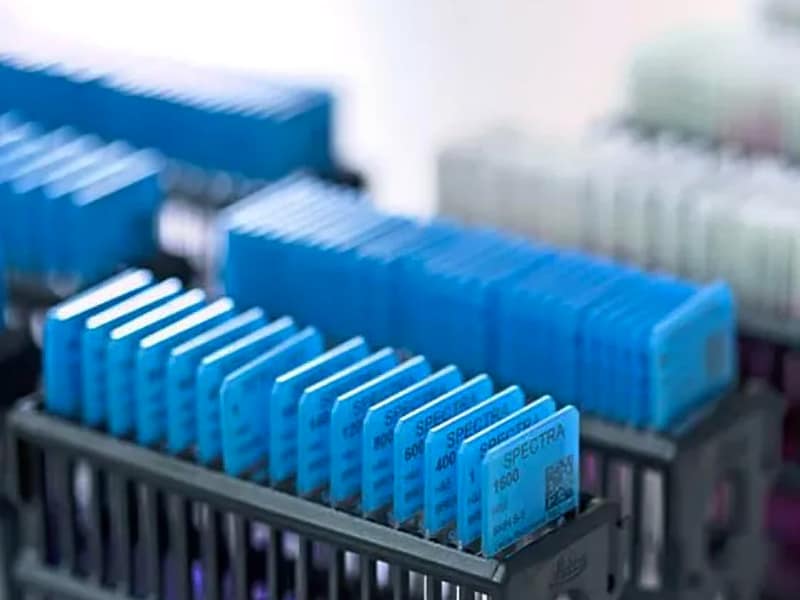

  • Improve case turnaround with no touch during scanning and continuous loading of the racks directly from the HistoCore SPECTRA Workstation (Stainer & Coverslipper)
  • Help increase IT security and control with a dedicated SAM (Scanner Admin Manager) server and software that allows you to set up and monitor multiple Aperio GT 450s at a time. No more single workstations for each scanner
  • Ensure excellent image quality with Leica optics



More Solutions from Leica Biosystems

Additional Information

Weight 63.5 kg
Dimensions 58.43 × 52.83 × 49.53 cm
Medical Device | IVD Certifications

No known regulatory approvals. Please consult with manufacturer.

40x Scan Speed (seconds)

< 60

No. FL Channels

N/A

Loading Capacity

450

Slide Capacity

Large (> 200 slides)

Scan Objective(s)

40x

20x Resolution (µM / Pixel)

N/A

40x Resolution (µM / Pixel)

0.26

20x Scan Speed (seconds)

N/A

Imaging Modality Supported

Brightfield

Slide Size(s)

Standard 25 mm x 75 mm (1"x 3")

Z-Stacks Supported

no

Scanning Method

TDI Line scan

Focus Method

Tilted sensor

Illumination

White LED

Barcode Capability

1D, 2D

Frozen Sections?

no

File Formats Produced | Supported

Leica .svs

Note

Specifications are gathered from publicly available online sources and are accurate to the best of our knowledge.

Clicking on the reviews will open them into a new webpage where you can see a detailed review, including individual scores for ease-of-use, reliability, value-for-money and service and support criteria.



There are no reviews yet.



Aperio GT 450 – Product Brochure
