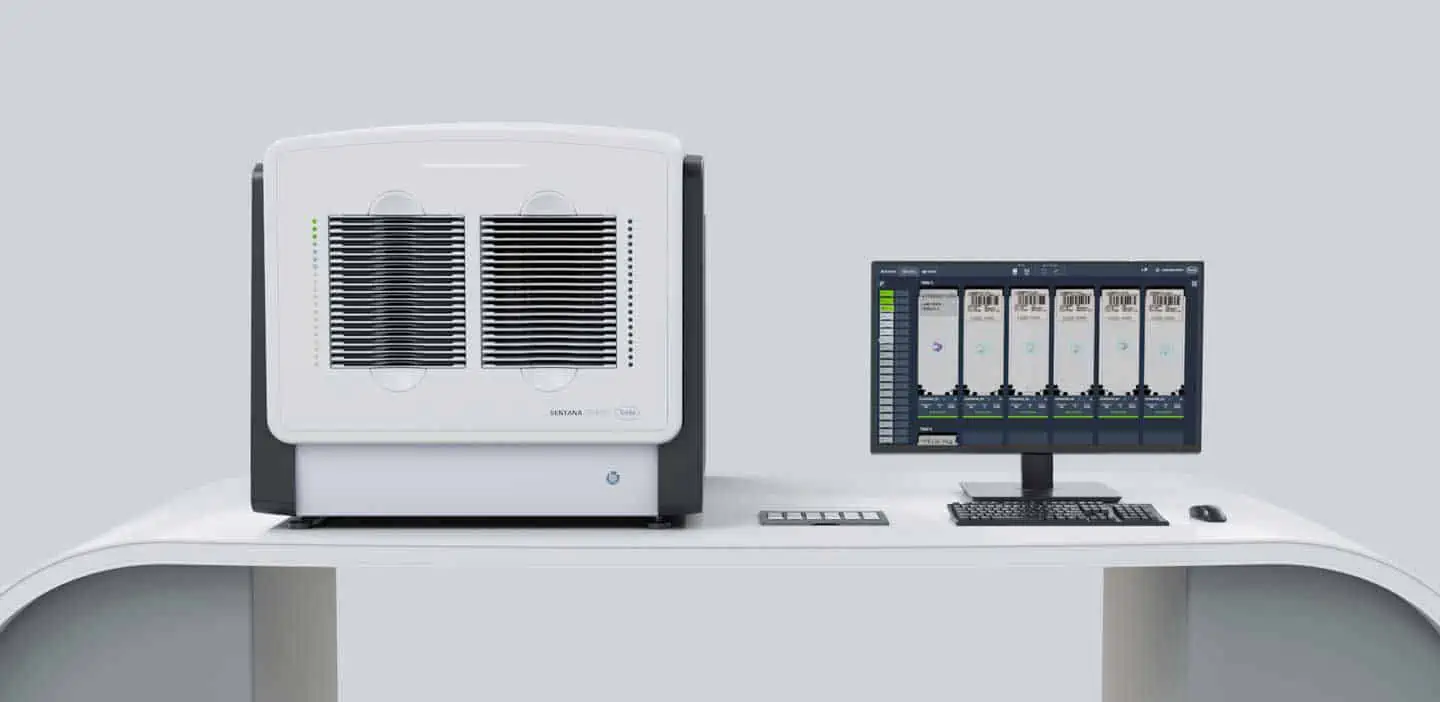

VENTANA DP 600 Slide Scanner

VENTANA DP 600 Slide Scanner

Enabling full digitisation of your pathology laboratory
Workflow flexibility meets high-capacity with the VENTANA DP 600 slide scanner featuring a slide tray-based system and built-in calibrations.

Compare
Categories: , Tag:

Product Description

VENTANA DP 600 Slide Scanner

The VENTANA DP 600 slide scanner is a significant addition to the Roche Digital Pathology portfolio as it will enable pathology laboratories to perform high volume and high quality scanning necessary for full digitisation of their pathology workflow with Roche as the partner of choice.

High capacity scanner maximises walkaway time. Lean workflow through automatic start and continuous loading of up to 40 trays of to keep up with slide volume without interrupting scanning.
Ease of use and workflow flexibility. Intuitive design and minimalistic user-interface streamline workflows while configurable options meet specific laboratory needs.

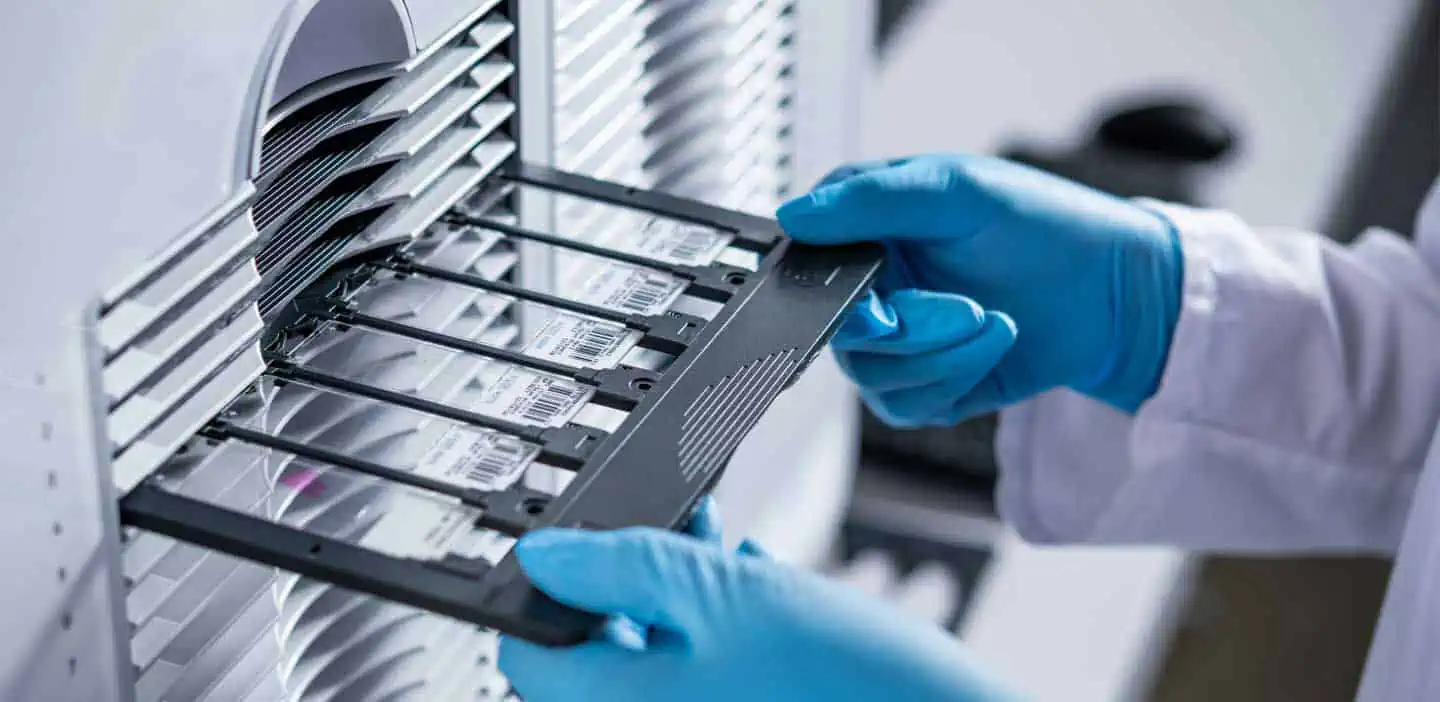

High image quality and reliable performance. The tray-based system eliminates slide-handling errors such as breakage and loss of slides, and improves reliability.

As intuitive as it is innovative

Dynamic focus technology and innovative optics create high quality images with color reproduction that maps to glass slides as seen under microscopes.

The VENTANA DP 600 slide scanner offers multiple applications and use cases to laboratories

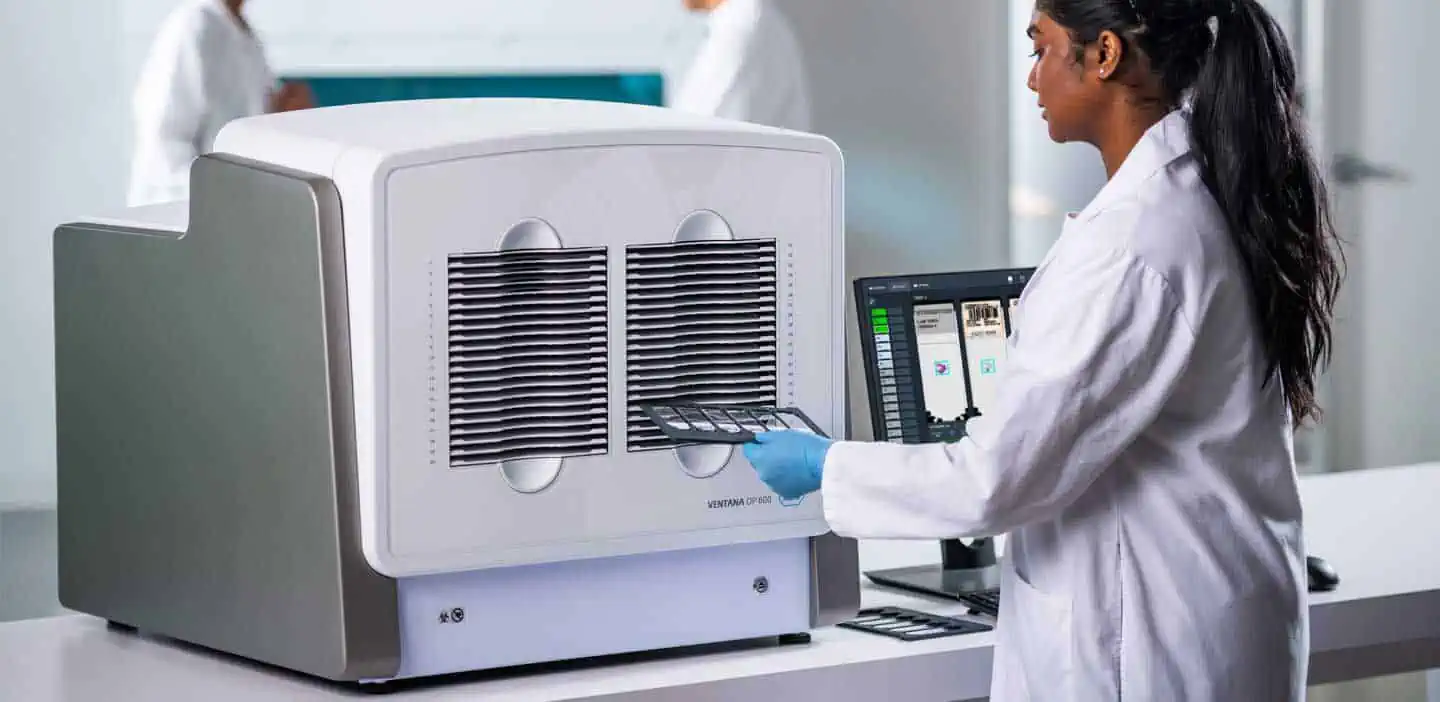

  • High capacity scanning for up to 240 slides (40 trays of 6 slides)
  • Digital archiving
  • Digitalise study data
  • Enables use of image analysis algorithms
  • Scan a variety of slide types including H&E, IHC, ISH, special stains, cytology and frozen sections

More Solutions from Roche

Additional Information

Medical Device | IVD Certifications

Europe (CE-Marked IVD)

Imaging Modality Supported

Brightfield

Max No. Multiplexed Biomarkers

N/A

Slide Capacity

Large (> 200 slides)

Scan Objective(s)

20x, 40x

Slide Size(s)

Standard 25 mm x 75 mm (1"x 3")

20x Resolution (µM / Pixel)

0.460

40x Resolution (µM / Pixel)

0.250

20x Scan Speed (seconds)

< 60

Z-Stacks Supported

yes

Frozen Sections?

yes

Scanning Method

Tri-Linear Line Scan with Dynamic Focus

File Formats Produced | Supported

DICOM, Roche .tif, TIFF/TIF, Ventana .bif

Barcode Capability

1D, 2D

Slide Handling

Tray based system with zero slide handling

Quality Control Measures

System supports QC checks at the scanner workstation

Colour Management Profile Avaliability

Built in

Diagnostic & Calibration Targets Availability

Built in
